Meet ZeroMag. C-Motive’s ZeroMag motors achieve high efficiency while maintaining a compact design with high torque density. These motors remove the need for conventional cooling systems or gearboxes, reducing efficiency losses and minimizing maintenance requirements.
Get ZeroMag
Interested in trying out ZeroMag in your facility? Request a quote for an engineering sample below.
Key Specifications
ZeroMag motors are designed for high-torque and low-speed operation (1 – 4hp designs, under 400rpm) and replace traditional gearmotors for conveyor systems, industrial fans, and pump/compressor applications.
Below are specifications for a 1.5 hp machine:
| Rated Torque | 60 Nm |
| Rated Speed | 180 rpm |
| Max Speed | 400 rpm |
| Rated Efficiency | 87% |
| Total Mass (Motor and Drive) | 48.0 kG /105 Lbs |
| Motor Mounting | NEMA 56C |
| Operating temperature range | 0-40°C ambient; derating above 35°C |

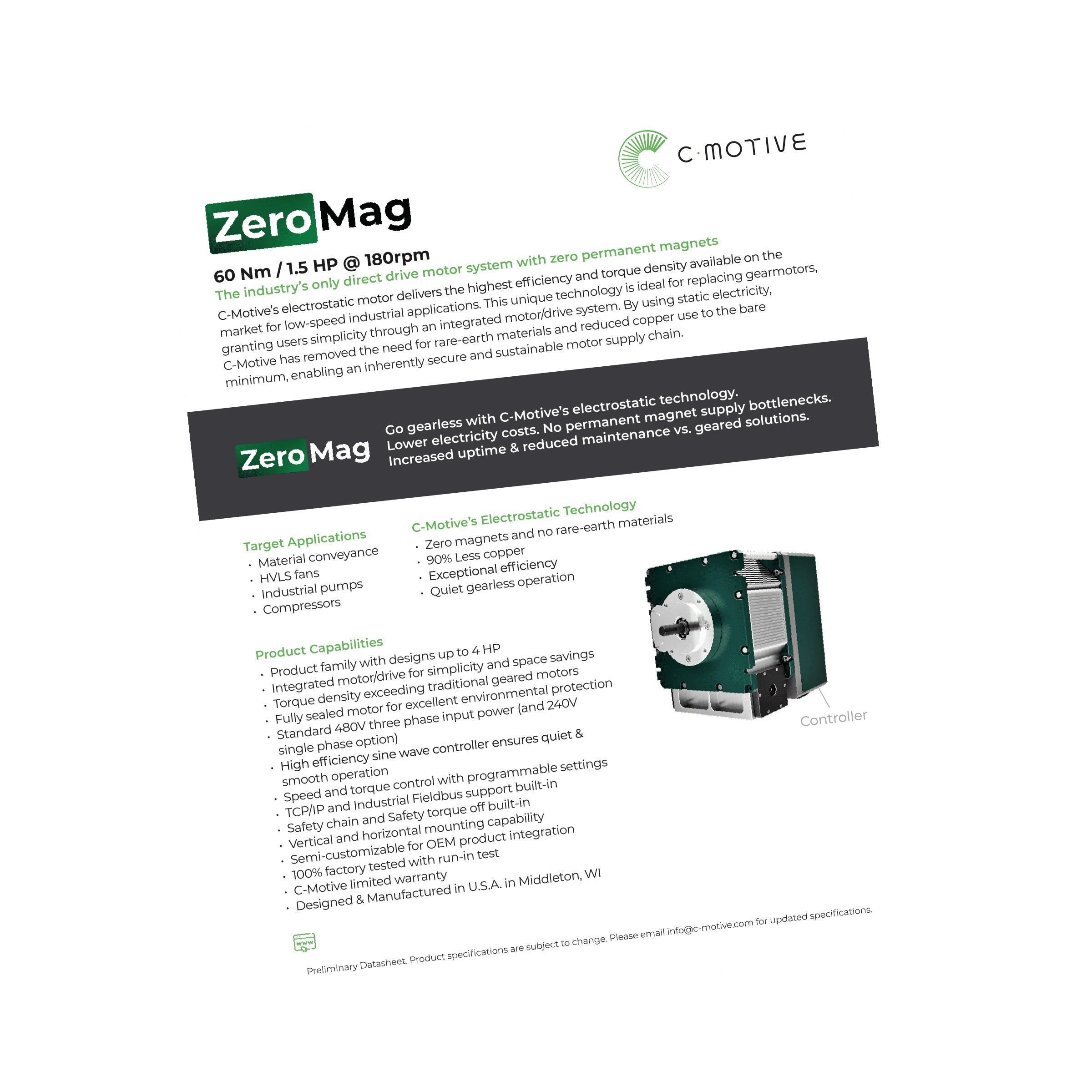

Interested in more information? Check out our Spec Sheet:

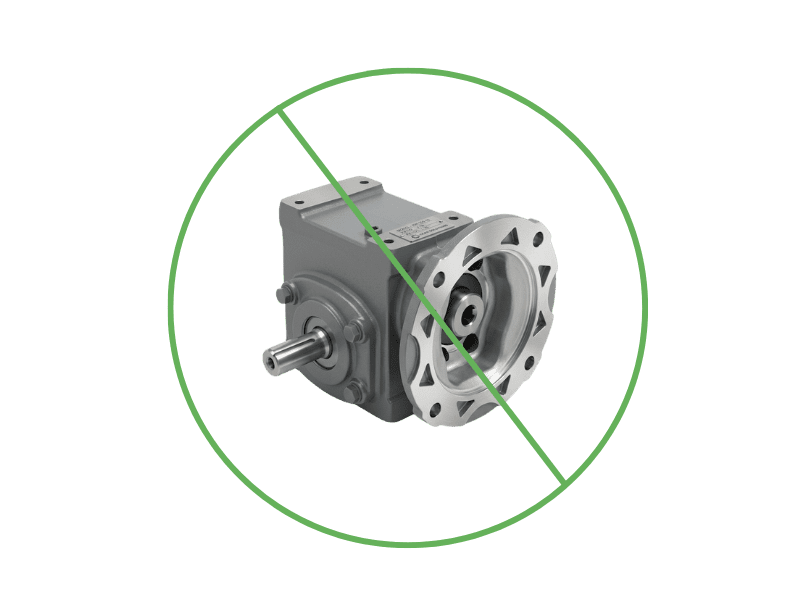

Eliminate the gearbox
Gearboxes reduce system energy efficiency and result in higher operational costs from expensive maintenance and increased downtime due to failures. This inefficiency, coupled with rising energy costs, creates a significant challenge for facilities’ operating conveyor systems. Costs associated with these issues include unscheduled downtime, high electricity bills, and even high inventory needs for replacement motors and gearboxes.

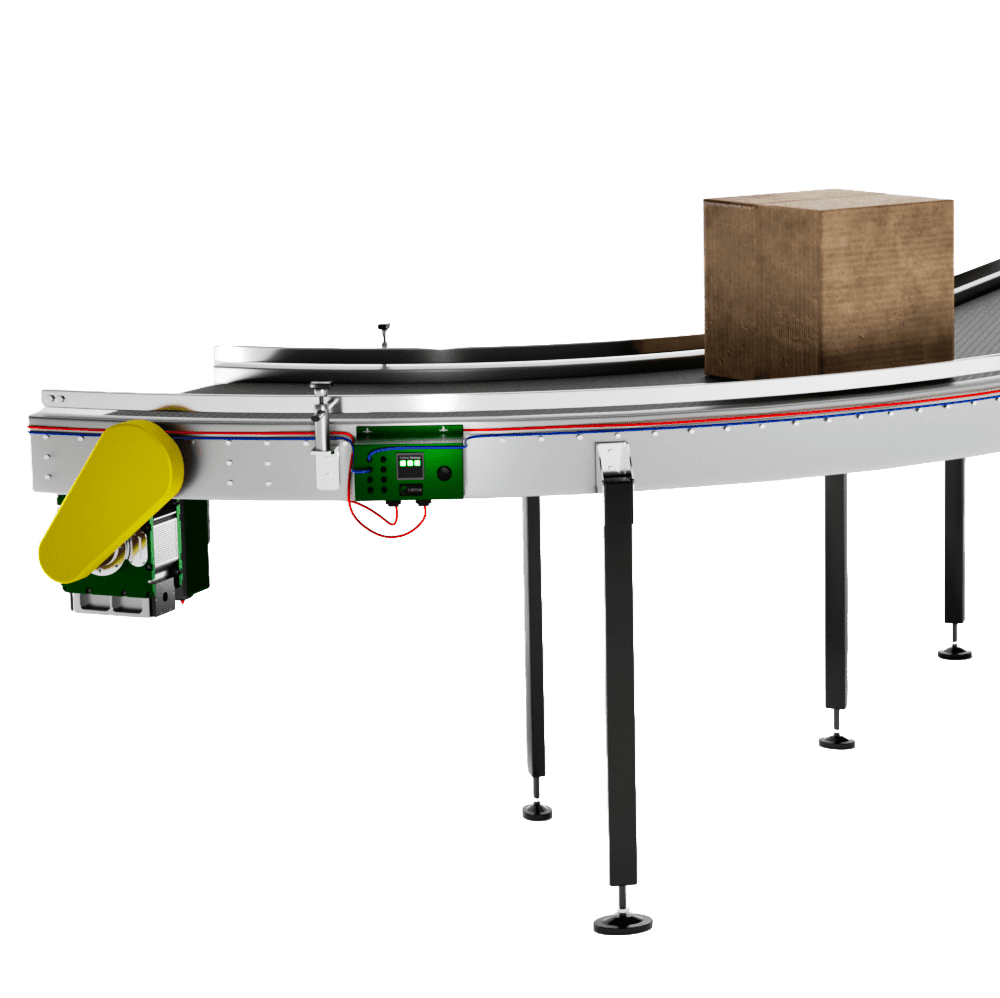

On-Machine Direct Drive System
ZeroMag’s drive system integrates the motor, VFD, control, safety, and communication functions into one streamlined architecture. The Control POD provides 480V line voltage, motor power and signal connections, automation system communications, and safety functionality such as STO (safe torque off) integration. Daisy-chain capability allows up to eight motors per circuit to be connected to one another. By eliminating the need for separate electrical distribution components and enclosures, facilities can reduce installation complexity and lower maintenance costs.

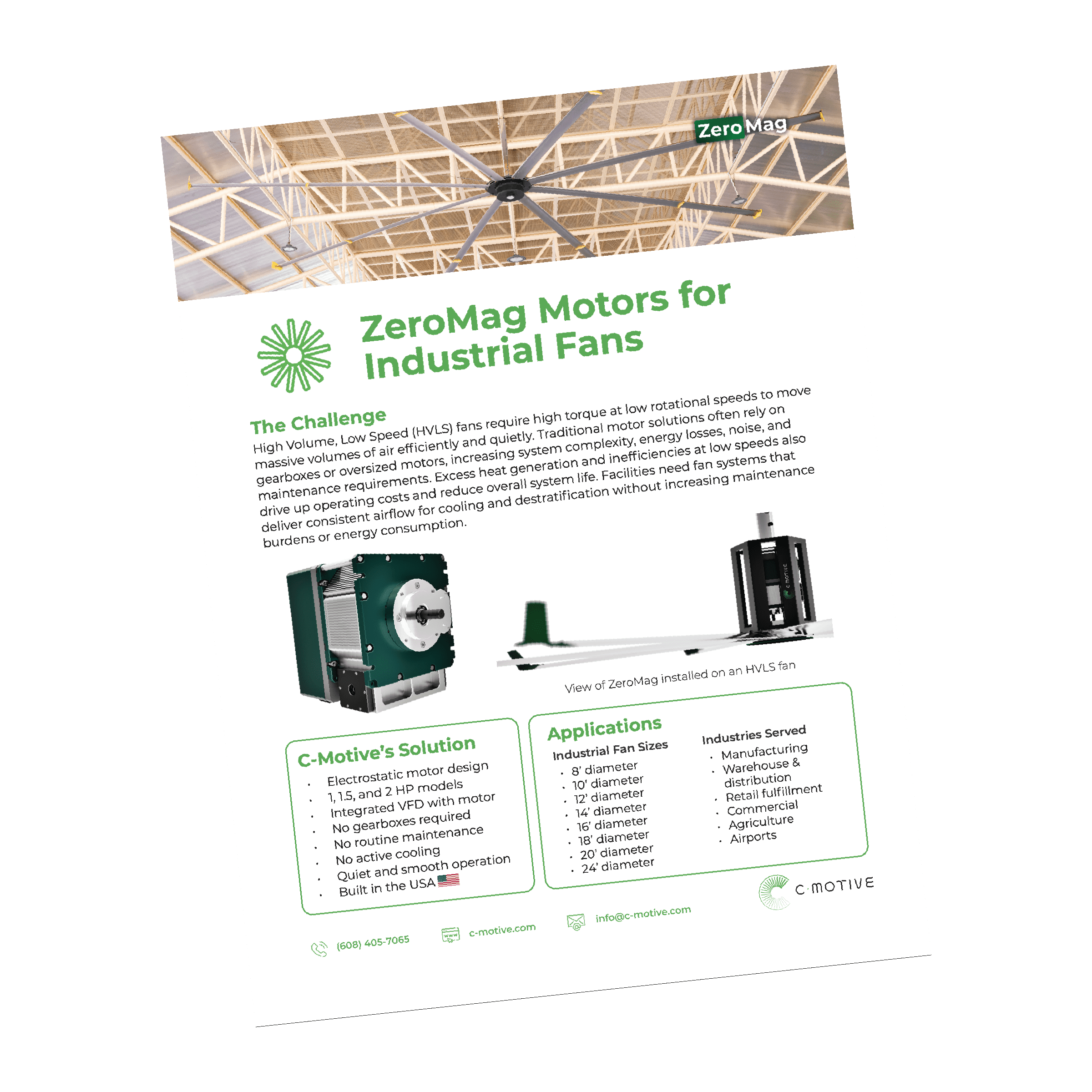

Check out our product brochures for specific information on your application:
